Polyplastics Offers Design Techniques and Know-How to Reduce Noise in POM Helical Gears

Polyplastics

Polyplastics, a leading global supplier of engineering thermoplastics, offers a range of design tips and techniques to help manufacturers reduce noise in helical gears made of polyoxymethylene (POM). Polyplastics is a leading global manufacturer of POM, under the DURACON® tradename, for diverse markets including gears.

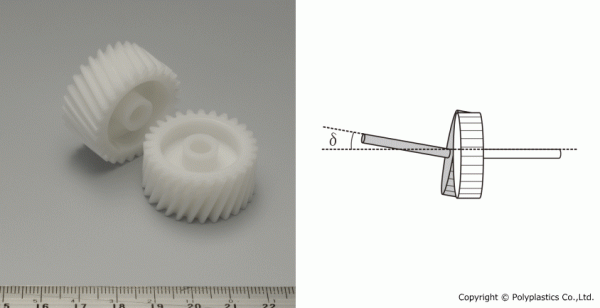

Among the design findings, it is generally believed that the tilt of the gear axis is an important consideration and its elimination will have a positive impact on noise issues. Polyplastics tried to verify that assumption, and actually focused on the skewed shaft angle (offset error). The company learned that noise does not necessarily worsen when the axis tilts.



Instead, Polyplastics found that noise issues arise when changing the center distance, depending on whether there is a skewed shaft angle. Polyplastics examined the impact of center distance for helical gears with a skewed shaft angle of 0 deg. Noise levels are lowest in the area where an increase in center distance is between 0 and 0.6mm, and then flattens out. On the other hand, noise increases beyond 0.6mm because the transverse contact ratio is less than 1.0.



Polyplastics notes that helical gears have a phenomenon called overlap ratio. Total contact ratio is the sum of transverse contact ratio and overlap ratio, and theoretically total contact ratio must be 1.0 or higher for rotation at constant speed on the driven side. Transverse contact ratio less than 1 means that the length of path of contact is less than one pitch. In other words, there is a space in which teeth do not touch within the space of one pitch. Findings show that helical gears will have a total contact ratio of 1 or higher and will keep operating at constant speed without noise issues.



For more information, visit https://www.polyplastics.com/en/support/gear/gear_noise/index.html
